Key Features of Precast Concrete Panel Installation

Precast concrete walls provide a versatile, durable, and efficient building solution for many construction projects.

This comprehensive guide covers everything you need to know about precast concrete walls including types, advantages, design considerations, comparisons to other methods, installation, costs, and more.

What is a Precast Concrete Wall?

A precast concrete wall is a construction wall component that is cast and cured in a manufacturing plant under controlled conditions. The precast wall sections are then transported to the construction site and lifted into place using a crane.

Precast concrete walls provide the many benefits of concrete construction while streamlining the building process through mass production and off-site fabrication methods.

They are an alternative to traditional poured-in-place concrete walls.

Some key properties of precast concrete walls:

• Composed of steel-reinforced concrete for strength and durability
• Cast into panels or sections for easy installation
• Can integrate insulation, windows, electrical conduits, etc.
• Offer fire resistance and sound dampening
• Customizable with various finishes and textures

Precast Concrete Panels Details

Precast concrete walls, made up of prefabricated concrete panels, are a popular choice for modern construction.

The precast wall installation process involves first preparing the construction site and foundations, then lifting the precast wall panels into place with a crane and connecting them.

Types of Precast Concrete Walls

Common types of precast concrete walls used in buildings include sandwich panels, hollow core panels, and solid panels. The precast panel installation procedure requires precision, as panels must align properly to connect.

Precast Wall Installation

Teams lower panels into brackets secured to the foundation or lower building levels, allowing how to install precast walls in a modular fashion.

To join panels, crews use methods like welded connections or post-tensioning to tie the sections together and complete how to connect precast concrete walls.

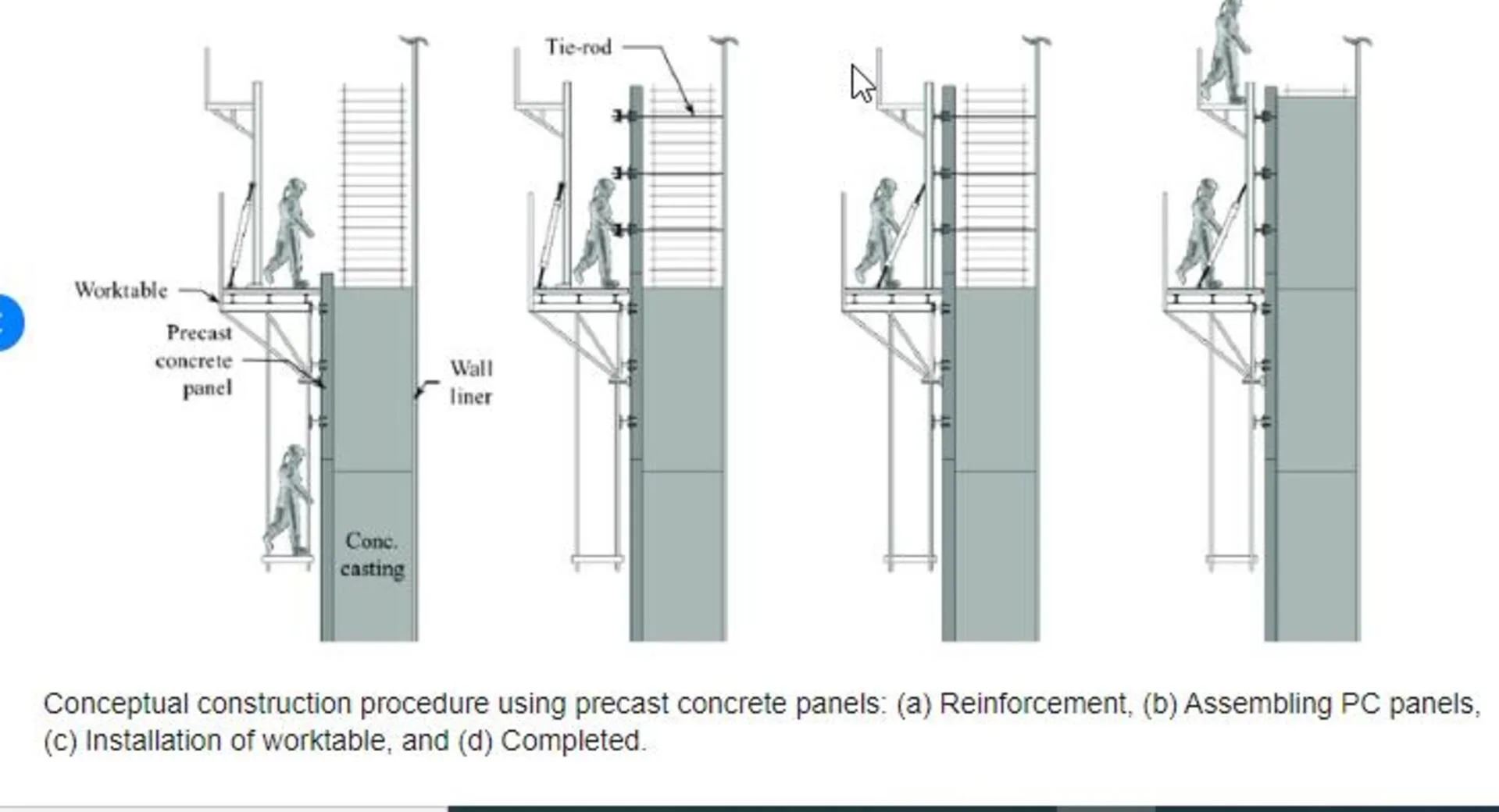

How to Install Precast Walls?

During construction, a precast concrete wall section is temporarily braced until fully secured. Precast concrete panels details like dimensions, reinforcement and finish are predetermined for each project and panel types of precast concrete walls desired.

Architectural precast wall panel details can include custom shapes, surface textures, and integral insulation for a high-performance building envelope.

Types of Precast Concrete Walls

There are several types of precast concrete wall systems available to suit different building requirements:

Solid Wall Panels

Solid wall panels contain no cores or hollow sections. They consist of a solid concrete cross-section reinforced with steel rebar cages. Solid panels provide maximum strength and durability. They are commonly used for shear walls.

Insulated Wall Panels

Insulated precast concrete wall panels contain cores of rigid foam insulation sandwiched between two layers of reinforced concrete. The insulation provides increased thermal performance while the concrete layers add strength. Insulated panels are used for exterior building envelopes.

Sandwich Wall Panels

Sandwich wall panels feature two wythes (concrete layers) separated by a lightweight concrete filling. The structural wythes on the exterior contain the reinforcing steel. Sandwich panels combine the strength and insulation value needed for exterior walls.

Load-bearing Wall Panels

Load-bearing precast concrete walls are designed to support vertical loads as well as their own self-weight. They may be solid or hollow-core panels with high compressive strength and steel reinforcing to provide structural integrity. They are used as an alternative to brick, block, or poured-in-place walls.

Non-loadbearing Wall Panels

Non-loadbearing precast wall panels are not designed to carry heavy vertical loads. They are used as infill panels between the main structural elements. They provide enclosure while relying on the structural frame for support.

Double Walls

Double wall precast construction uses two independent wythes separated by an air space. This application provides enhanced thermal efficiency, sound absorption, and space to run utilities without penetrations. The two wythes are integrated using special connectors.

Shotcrete Walls

Shotcrete refers to concrete that is spray-applied onto rebar mesh to build up a wall layer by layer. Precast shotcrete involves spraying the shotcrete onto panels in a controlled plant setting versus applying it on-site. This improves quality.

Advantages of Precast Concrete Walls

There are many compelling benefits that make precast concrete walls a preferred choice for quality, efficiency, and performance:

High Strength and Durability

The precast manufacturing process results in exceptionally high-quality, dense concrete with compressive strengths up to 10,000 psi. The end result is a highly durable concrete product that far exceeds typical cast-in-place concrete. Precast walls maintain their structural integrity and appearance for decades.

Speed of Installation

Precast concrete wall systems are fast to install compared to other methods. After site preparation, a trained crew can install precast panels at a rate of 150 sq ft per hour. This allows the building to be enclosed quickly so interior work can commence sooner.

Cost Savings

When the speed of construction is factored in, precast concrete walls provide significant cost savings.

Faster enclosure means earlier completion. There are also savings on skilled labor, materials waste, and construction supervision time.

Flexible Design Options

Precast walls can be manufactured with reveals, varied surface textures, colors, finishes, and nearly any architectural feature.

Intricate designs are no problem and recycled materials can be used as aggregates. Windows, doors, and utilities can be integrated into the panels.

High Quality Control

Since precast panels are factory-produced in a controlled environment, quality assurance standards are easier to maintain compared to cast-in-place methods. The result is consistent, high-quality concrete work regardless of weather or site conditions.

Fire Resistance

Properly designed precast concrete walls exhibit excellent fire performance. Concrete is noncombustible and provides predictable fire resistance ratings based on thickness and aggregates used. Panels containing insulation improve ratings further.

Thermal Efficiency

Insulated precast concrete sandwich panels or hollow-core wythes filled with insulation provide exceptional thermal resistance. This improves energy efficiency and reduces heating/cooling costs compared to single-wythe concrete or masonry walls.

Sound Attenuation

With their dense, heavy mass and ability to integrate insulating cores, precast concrete walls offer very effective acoustic control. They block exterior noise far more than comparative lightweight systems. Hollow cores also dampen interior noise transmission.

Minimal Maintenance

Precast concrete walls are highly durable and resistant to weathering, rotting, corrosion, and insects. If properly installed, they require very minimal maintenance beyond occasional cleaning and caulking inspections. The service life is up to 100 years.

Sustainability

Precast concrete has many sustainable benefits. Production uses minimal waste materials and sandwich wall panels are energy efficient. Concrete can also incorporate fly ash, slag, recycled aggregates, and industrial byproducts. Panels can be reused when renovating.

Precast Concrete Wall Design Guide

Proper design is critical for precast concrete walls to perform as expected. Here are key design considerations:

• Determine structural loads including dead loads, live loads, wind, seismic, snow, etc. The wall panels must have sufficient strength to resist these forces.
• Select the most suitable precast concrete wall type based on structural and architectural requirements. Consider integrating insulation, sound dampening, openings, etc.
• The wall panel connections play a crucial role in the system’s integrity. Specify high-strength, durable connection hardware and design for structural continuity.
• Account for tolerances in the manufacturing process and allow for adjustments during installation. Use reveal joints for alignment.
• Design precast wall panels in coordination with the overall building system. Integrate with floors, columns, and foundations appropriately.
• Specify high quality, durable concrete mixes and finishes that will perform for the service life of the building. Consider corrosion protection.
• Detailing is important for performance and appearance. Clearly indicate dimensions, reinforcement, openings, finishes, lifting points, connections, etc.
• Work with experienced precast manufacturers early in the design process to leverage their expertise in constructability, transportation, and erection considerations.

Precast Concrete Walls vs. Poured in Place Concrete Walls

While both precast and poured-in-place concrete construction have their merits, precast concrete generally provides higher quality and faster installation. Here is a detailed comparison:

Quality Control

• Precast panels are cast in a controlled factory setting resulting in higher quality concrete and close tolerances. Pouring concrete on-site leads to increased variability.

Strength

• Precast concrete can be engineered with compressive strengths exceeding 10,000 psi. On-site pours typically achieve only 2,500 – 4,000 psi strength.

Reinforcing

• Precast panels use double the rebar density compared to poured-in-place concrete for durability. Congested sites make steel placement difficult during on-site pours.

Insulation

• Insulated precast sandwich panels provide high thermal performance that exceeds code minimums. Insulating poured-in-place concrete walls is more complex.

Installation Speed

• Precast panel installation is 3-5 times faster than traditional concrete forming and pouring. Production can continue year-round unaffected by weather.

Waste

• Virtually no concrete waste is created during precast fabrication compared to excess material from on-site pouring and formwork removal.

Appearance

• Precast walls provide consistent surfaces and textures. Wood formwork for cast-in-place walls can create variation and unsightly seams.

Cost

• Faster enclosure using precast lowers overall construction costs despite slightly higher material costs. Poured-in-place concrete has lower material costs but higher labor.

Performance Testing

• Full-scale precast wall panel prototypes can be tested in a lab for validation. On-site poured concrete does not offer testing capability.

Overall, the enhanced quality control, speed, and performance factors make precast concrete walls a better choice for many projects over poured-in-place construction.

Precast Concrete Wall Construction Process

Constructing with precast concrete walls follows a well-defined sequence of steps:

1. Production

The precast manufacturer fabricates the reinforced concrete panels to the project specifications in a controlled plant setting. Strict quality protocols are followed. The panels are cast and then cured to achieve the specified compressive strength.

2. Storage and Transportation

After the precast concrete wall panels pass inspection, they are stored until they are transported to the job site. Panels are carefully loaded onto trucks for delivery. The transportation process is planned to avoid obstacles.

3. Foundation Preparation

While production occurs, the construction team prepares the building foundation and floor slab. Connectors are cast into the slab to tie the wall panels. The foundation must be level, plum, and conform to elevations.

4. Panel Installation

A crane is used to hoist precast panels from the trucks and set them into position atop the foundation. Workers guide the panels into place and temporarily brace or bolt them. Safety procedures are strictly enforced during lifting.

5. Alignment and Grouting

Wall panels are aligned with reveal joints and aligned. Non-shrink grout is pumped into joints between panels and floors to create a solid connection. Grouting provides structural continuity. Panel braces are removed after grouting achieves strength.

6. Connections and Backfilling

Mechanical connections are made between panels and structural members according to the plans. Utility conduits are routed through preformed openings. After inspection, backfilling occurs along the exterior to complete the wall system installation.

When completed according to the construction documents, the precast concrete wall system provides an immediately enclosed structure ideal for follow-on interior finish work.

Precast Concrete Wall Panel Details

Some key details and design elements for optimal precast wall panel fabrication and installation include:

• Lifting inserts – Provide reinforced lifting points so panels can be safely hoisted into position without damage.
• Edge chamfers – Chamfered edges reduce chipping during handling and provide a neat, finished appearance.
• Reveal joints – The separations between panels are detailed as reveals for consistent control joint spacing.
• Insulated cores – Hollow sections or foam insulation maximize energy efficiency in sandwich wall panels.
• Wythe connectors – Use welded wire trusses or metal ties to structurally connect multi-wythe panels.
• Reinforcing – Panels contain double the rebar density of typical cast-in-place walls for strength.
• Window and door openings – Openings are cast or cut into panels based on shop drawings then lined with anchors to attach frames.
• Flashing – Flashing material is integrated during fabrication to protect openings from water penetration.
• Surface finishes – Many finishes are possible including smooth, textured, colored, etc. to achieve desired appearance.
• Connection hardware – High-strength anchors, plates, bolts, and angles are designed to secure panels.

Proper detailing is imperative to achieve the full structural, thermal, and aesthetic potential of precast concrete wall systems.

Precast Concrete Walls Cost Savings

The cost profile of precast concrete walls provides notable advantages:

• Faster installation compared to other methods results in lower on-site labor costs.
• Material costs for precast are higher but are offset by reduction in wasted concrete and reusable forms.
• Earlier building enclosure from accelerated construction speeds allows faster occupancy.
• More efficient construction timetable reduces construction management and supervision costs.
• Controlled factory conditions prevent weather delays that extend poured-in-place wall projects.
• Higher quality precast concrete leads to lower maintenance costs over the building lifespan.
• Insulated sandwich panel configurations provide energy savings over time.
• Precast wall producers have experience engineering economical panels to provide required performance at competitive pricing.
• Added initial cost of precast walls should be evaluated against the lifetime building costs to reveal the savings potential.

Although the upfront cost may be higher for precast, when factoring in the labor, time, and performance benefits, precast concrete walls provide compelling cost savings that make them a valuable investment.

Precast Concrete Wall Insulation Methods

Insulating precast concrete sandwich panels is a highly effective strategy to meet energy codes and achieve sustainability goals. Here are insulation approaches used with precast walls:

• Rigid Foam Cores – Expanded or extruded polystyrene foam boards sandwiched between wythes is the most common insulating method. Foam provides high R-values.
• Insulating Concrete – Cellular concrete with a porous structure can be used between the wythes in lieu of foam. It offers lower insulation values but other benefits.
• Perlite Concrete – Concrete made with perlite aggregate is lightweight and insulative while also fire resistant. Perlite mixtures work in thin panels.
• Mineral Wool – Mineral wool batts or boards made of basalt or slag can fill sandwich panel cores providing thermal and fire performance.
• Polyisocyanurate Foam – Rigid polyisocyanurate foam has the highest R-value (R-7 per inch) and thin versions are used in constrained spaces.
• Fiberglass Blankets – Semi-rigid fiberglass mats or blankets can provide cost-effective insulation filling for wider sandwich wall panels.

Including integrated insulation is a smart way to boost the energy efficiency of precast concrete walls and eliminate the challenges of adding it later.

Installing Windows in Precast Concrete Walls

Windows are integrated into precast concrete walls using the following techniques:

• Cast window openings into panels per architectural plans with added reinforcing around openings.
• Cut openings on-site with concrete saws and hands tools. Smooth and prepare openings for windows.
• Insert buck frame in opening to provide nailing surface for window flanges. Anchor firmly in place.
• Install flashing material at sill to direct water to exterior. Extend up jambs and seal to panel.
• Caulk between window frame and rough opening to create air seal. Provide backer rod as needed.
• Anchor window frame firmly into buck frame or jambs anchors via screws or welded connections.
• On exterior, provide seal between window frame and panel. Attach trim, sill, and sealants for water tightness.
• At interior, attach drywall or trim material for clean finish around window. Seal gap between frame and gypsum.

Proper planning for window locations and integrations during precast panel design is critical for performance and avoid costly on-site modifications.

Precast Concrete Walls Fire Resistance

Properly designed precast concrete walls provide inherent fire resistance advantages:

• Concrete is noncombustible and does not emit smoke or toxic gases when exposed to high heat.

-Density delays heat transfer through concrete wall sections even without insulation.

• Reinforcing steel remains protected by concrete cover and maintains strength in fire.
• Insulated core panels containing foam or concrete enhance fire ratings.
• Minimum 4-hour fire ratings are readily achieved for enclosure walls. Ratings of 6 hours or more are possible.
• Interior partition walls fabricated from precast concrete can achieve 1-2 hour fire ratings.
• Adding foam or intumescent coatings boosts fire ratings further for critical areas.

Precast concrete does not require additional fireproofing treatments and the fire performance can be precisely engineered based on wall panel composition and thickness.

Precast Concrete Wall Connections Details

The structural connections for precast walls must be robust and properly designed:

• Panel-to-Panel – Tongue-and-groove edges with semi-rigid grout create alignment and continuity between wall panels.
• Floor-to-Wall – Pocket inserts, pivot anchors, or welded headed studs securely attach panels to floor slabs. Grouting fills joints.
• Wall-to-Roof – Angles or brackets bolt precast panels securely to roof beams, joists, or slabs above.
• Corner – Panels intersect perpendicularly and connect via welded plates on the adjoining faces. Grouted joints provide rigidity.
• Wall Openings -Frames around doors and windows bolt directly into embedded anchors in panels. Blockouts permit access for welding.
• Shear Walls – Special high-capacity hardware including claws, tension ties, rods, and turnbuckles provide lateral load resistance.

A licensed engineer should design the connection details taking into account all structural factors including wind, seismic, and building dynamics.

Precast Foam Concrete Walls

Precast wall panels made of lightweight foam concrete provide insulation value and streamlined construction:

• Foam concrete contains air-filled voids in the cementitious matrix created by foaming agents. This provides insulation properties lacking in normal concrete.
• Densities range from 30-120 lbs/ft3 compared to normal concrete at 140-150 lbs/ft3. Strength is reduced but still adequate for walls.
• The lightweight of foam concrete panels reduces construction time and crane costs. Easier handling also improves safety.
• Foam concrete offers similar fire resistance, sound attenuation, and durability as standard precast wall panels.
• Insulating performance provides code-compliant R-values without additional steps. Foam concrete walls prevent thermal bridging.

Foam concrete walls retain the advantages of precast construction while also improving efficiency for certain applications through reduced weight and enhanced insulation.

Precast Insulated Concrete Walls

Insulated precast concrete wall panels incorporate insulation for energy efficiency:

Here are some key details on precast insulated concrete walls:

• Insulated precast concrete sandwich panels contain insulating material between two structural wythes of concrete. This improves thermal insulation compared to single concrete walls.
• The most common insulation used is expanded polystyrene (EPS) rigid foam boards. The foam is inserted into the wall cavity during fabrication.
• Other insulation materials like polyisocyanurate foam, mineral wool, perlite concrete, and fiberglass can also be used.
• Insulation thickness ranges from 2-6 inches depending on climate and desired R-value. Building codes dictate minimum insulation requirements.
• Steel wythe connectors like trusses or ties pass through the insulation to structurally tie the two concrete wythes together.
• The insulation provides continuous insulation and mitigates thermal bridging through the highly conductive concrete material.
• Precast wall panels with insulation values of R-10 to R-30 are common depending on climate needs and code. Higher values are possible.
• Insulated precast delivers an energy efficient and well-insulated building envelope in one easy-to-install system..

conclusion

Precast concrete walls provide numerous advantages that make them a highly versatile and efficient building enclosure solution.

With their inherent durability, strength, speed of installation, design flexibility, quality control, and performance attributes, precast concrete walls represent an advanced construction method.

When utilized optimally through proper design detailing and integration with other building systems, precast wall panels enable high-quality structures to be built rapidly and economically.

Although the initial investment may be higher, precast concrete walls add value over the full lifecycle of a building through low maintenance needs, energy savings, and decades of reliable service life.

For many modern construction projects, precast concrete walls are an optimal choice that allows owners, architects, engineers, and contractors to meet demands for quality, efficiency, and sustainability.
