The plinth beam is a critical structural component that connects the foundation and superstructure. Proper design and reinforcement of the plinth beam is essential for transferring loads safely to the ground.

This article provides a detailed overview of plinth beam reinforcement details, including calculation, diagram, placement, and sizing. Both steel and concrete play vital roles as reinforcements in the plinth beam system.

The main steel reinforcement bars resist the tensile stresses while the surrounding concrete provides compressive strength. We examine the complete plinth beam reinforcement process – from initial design as per codal provisions, bar sizes and grades, spacing requirements, to final placement and incorporation with concrete.

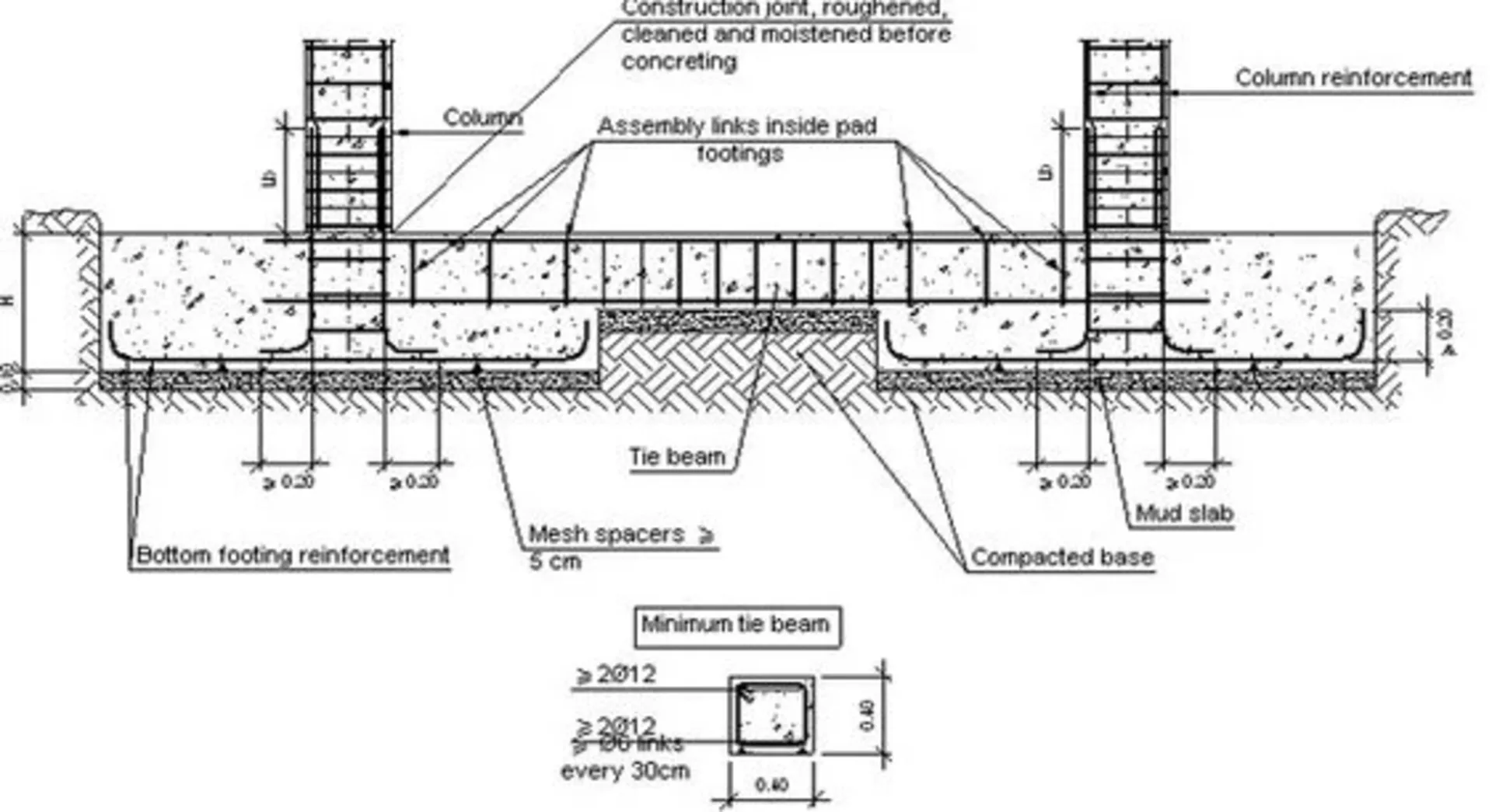

plinth beam reinforcement

Plinth Beam Reinforcement Details

The plinth beam is a reinforced concrete beam built between the foundation and the superstructure. It distributes loads from the superstructure to the foundation evenly. Proper reinforcement is crucial for structural integrity. Main reinforcement bars are placed along the beam span and distribution bars are placed perpendicular. The main bars are usually high strength deformed bars while distribution bars may be plain or deformed bars.

Here are some key details regarding plinth beam reinforcement:

  • The main reinforcement bars in a plinth beam are usually high strength deformed steel bars that run longitudinally along the length of the beam. Common diameters are 12mm, 16mm or 20mm.
  • Distribution bars are placed perpendicular to the main bars to distribute the loads. These are usually 10mm or 12mm diameter plain or deformed bars spaced at 100-150mm centers.
  • Shear reinforcement is provided in the form of stirrups or ties. These are 8mm or 10mm bars spaced closer near the supports and wider at midspan.
  • The main bars are kept closer to the extreme tension face – bottom at midspan and top near supports. Cover to main bars is typically 40mm.
  • Anchorage length is provided beyond the theoretical support to prevent slippage of bars. This is usually 50 times bar diameter.
  • Bars are held in place with cement mortar blocks and stirrups are tied to the main bars to prevent displacement during concreting.
  • Minimum and maximum areas of steel are provided as per design codes to prevent under-reinforced or over-reinforced sections.
  • Lap lengths are provided whenever bars need to be spliced along the length. The lapping bars are tied together.
  • Beam-column joints have additional reinforcement to resist the combined effect of bending moments and shear forces.

Plinth Beam Reinforcement Calculation

The plinth beam reinforcement is calculated based on the beam’s dimensions, concrete grade, and imposed loads. The main reinforcement area is calculated by estimating the bending moment and designing for under-reinforced sections. Shear reinforcement is calculated from the beam depth and imposed shear. Anchorage and development lengths are also checked. Minimum and maximum reinforcement percentages are adhered to.

the key steps involved in calculating the reinforcement required for a plinth beam:

  1. Determine the imposed loads on the plinth beam including the self-weight of the beam, loads from the superstructure, wall loads, etc.
  2. Calculate the maximum bending moment and shear force values at critical sections like the supports and midspan. This is done by preparing the load distribution diagram.
  3. Select the width and depth of the plinth beam based on the structural design.
  4. Choose the concrete grade to be used. Higher grade concrete requires less reinforcement.
  5. Determine the main steel area required at the critical sections using the bending moment and permissible stresses in steel and concrete. Minimum and maximum reinforcement percentages are adhered to.
  6. Calculate the shear reinforcement stirrups required based on the shear force and beam depth. Stirrup spacing is reduced near the high shear zones close to supports.
  7. Determine development length and anchorage length for bars to prevent bond failures. Lap lengths for spliced bars are also calculated.
  8. Do the curtailment design for bars which need to be cutoff before supports.
    Prepare detailed bar bending schedule and cut sheets for the fabricators

Plinth Beam Reinforcement Design

The plinth beam is designed for bending, shear, and torsion as applicable. Sections near the supports are designed for maximum positive and negative moments. Shear force calculation is done at critical sections.

Torsion is checked at ends where plinth beam interfaces with foundation or column. The final reinforcement provided is the maximum of that required for bending, shear, or torsion. Adequate anchorage and development lengths are also ensured.

Plinth Beam Reinforcement Placement

key points about proper placement of reinforcement in plinth beams:

  • The main reinforcement bars are placed closest to the extreme tension face – bottom bars at midspan and top bars near supports.
  • Distribution bars are spaced evenly within the concrete cover using cement mortar blocks for proper spacing.
  • Stirrups are placed perpendicular to the span to resist the shear force. Spacing is reduced near the supports where shear force is higher.
  • Anchorage length is provided beyond the theoretical support point to prevent slippage of bars.
  • Bars are accurately cut and bent as per the bar bending schedule. Any rebars crossed within the beam are tied together with binding wire.
  • Laps are provided for splicing the bars to maintain continuity. Lapping bars are tied securely with binding wire.
  • Cover blocks made of cement mortar maintain the design concrete cover and air gap between parallel bars. This prevents honeycombing.
  • Binding wires tied to stirrups prevent displacement of rebars during concreting.
  • Bars are placed on sturdy supports which take the load without displacement or sagging.
  • Concreting is done carefully to prevent segregation and honeycombing, especially in congested zones.

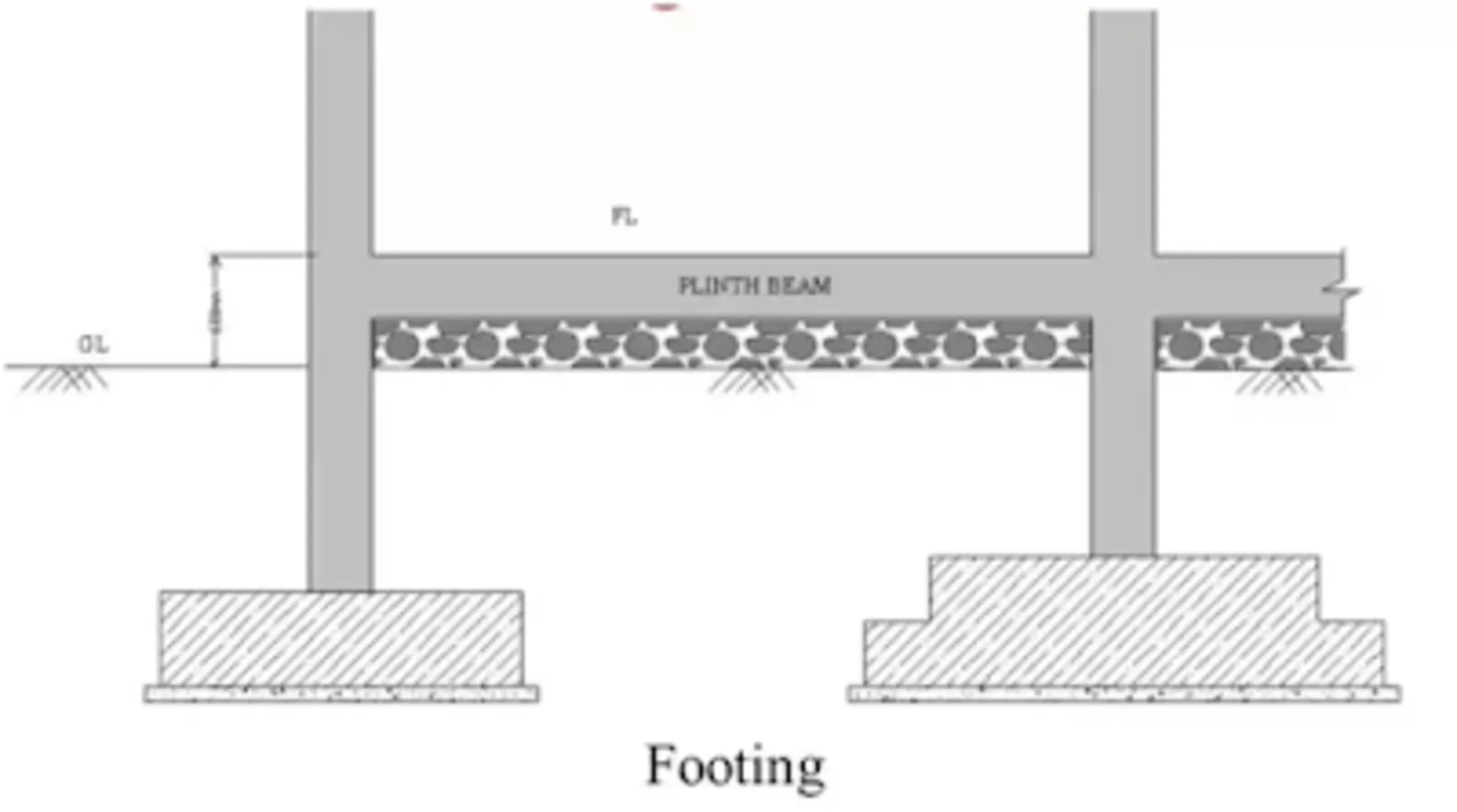

plinth beam reinforcement

Plinth Beam Reinforcement Size

  • The diameter of main longitudinal reinforcement bars typically ranges from 12mm to 20mm. Higher diameters like 25mm or 32mm may be used for deeper beams.
  • The size is selected based on the required area of steel calculated from the bending moment and shear force at critical sections.
  • Higher diameter bars require less number of bars and are easier to place. But availability and constructability should be considered.
  • Distribution bars are usually 10mm or 12mm diameter. Smaller diameters suffice as the stresses are lower.
  • Shear reinforcement stirrups are usually 8mm or 10mm diameter bars. Some codes allow minimum 6mm bars also.
  • Higher strength reinforcement can be provided by using higher steel grade like Fe500 instead of increasing bar diameter.
  • Larger diameter bars may be necessitated at openings or at junctions with columns where stresses are high.
  • Anchorage lengths, lapping lengths, spacing and cover requirements should be met when selecting bar diameter.
  • The size and number of bars should allow easy flow of concrete between and around the reinforcement.
  • Standard diameters as per rebar availability in the market should be preferred. Custom sizes are avoided.

Plinth Beam Reinforcement Spacing

The minimum clear spacing between parallel main reinforcement bars should be greater than the bar diameter or 25mm.

It should also allow for efficient concrete flow during placement. As a guideline, the spacing can be reduced to 2.5 times the bar diameter.

Distribution bars may be spaced closer between 100-150mm. Stirrup spacing also depends on shear demand but ranges from 100-250mm. Closer stirrup spacing is provided near beam supports.

Plinth Beam Reinforcement Bars

High strength deformed bars with a grade of Fe500 are most optimal for plinth beam reinforcement.

The deformations provide better bonding with concrete. Fe250, Fe415 or Fe550 grade bars may also be used. For distribution bars, Fe250 or Fe415 grade bars are common. The main reinforcement requires bars of higher strength compared to distribution bars which see lower stresses. The choice also depends on availability and cost.

Plinth Beam Steel Reinforcement

The plinth beam primarily relies on steel reinforcement to resist tensile stresses and bond with concrete. Steel has high strength, ductility and excellent bond with concrete which makes it ideal for reinforcement.

Thermo-Mechanically Treated steel bars have high yield strength allowing optimization of reinforcement. The steel must conform to grade specifications and be free from loose rust or scaling to prevent bond deterioration.

Plinth Beam Concrete Reinforcement

While steel bars provide tensile strength, the concrete provides compressive strength in the plinth beam. Concrete has relatively lower tensile strength, so cracks are controlled by steel reinforcement.

The concrete also protects the steel from corrosion and fire. Good quality concrete with proper cover is essential to ensure durability and structural safety. The concrete mix, grade and placing technique must adhere to standards.


The plinth beam is a critical structural member that transfers loads from the superstructure to the foundation. It requires careful design and detailing of the reinforcement to ensure structural stability and safety.

Proper reinforcement methodology as per established codes and standards ensures the plinth beam has sufficient strength to withstand the imposed loads. Attention to aspects like the required area of steel, correct bar diameters, spacing and concrete cover prevents problems like under-reinforcement, cracking and bond failures.

The details and guidelines compiled in this article will enable engineers, contractors and builders to effectively design and construct safe and durable plinth beam systems.
