Concrete Honeycombing Repair is required to treat rough and stony surface that appears on concrete when there are air voids between the course and the aggregate.

This happens when insufficient fine material gets into the concrete mixture due to poor mixing or incorrect aggregate grading

When poured concrete does not completely fill the formwork, voids can occur in the finished product.

Known as honeycombing due to the pattern of gaps resembling a honeycomb, this concrete defect significantly impacts strength and durability.

concrete Honeycombing happens when highly fluid concrete flows past steel congested areas or blocked sections without filling them properly.

Insufficient vibration leaves air pockets once formwork is stripped.

The problems compound if coarse aggregate separates in high slump concrete, clogging flow across reinforcement bars.

Extensive honeycombing makes freshly set concrete unstable, prone to further collapse.

While minor concrete honeycombing can be patched after formwork removal, severe voids require costly remedial measures.

Preventing the problem proactively through optimal mix design, pouring sequence, vibration practices, and quality inspection checks proves more economical over the structure life-cycle.

Locating concrete honeycombing also helps identify systematic construction issues related to formwork design, congestion zones, poor vibration planning or lack of supervision.

Technology improvements via digital sensors and AI-based image processing enable real-time concrete honeycombing detection before it hardens.

However, visual checks by experienced staff continue to be vital.

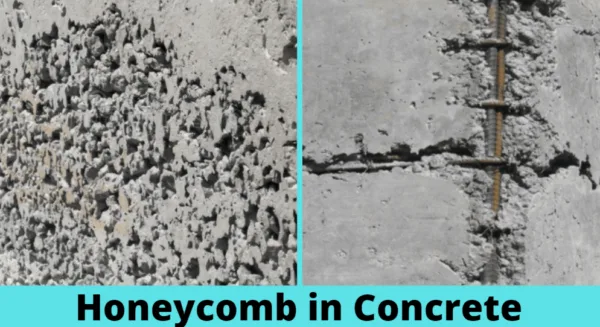

honeycomb in concrete

types of concrete honeycombing

Here are 5 common types of concrete honeycombing that can occur in concrete:

  1. Surface Honeycombs
    These voids exist just below the exposed concrete face after formwork stripping. They arise from inadequate vibration, lack of concrete fines near the surface, improper slump, or poor formwork quality. Surface honeycombs severely impact durability.
  2. Internal Slab Honeycombs
    Insufficient vibration energy in slabs leads to gaps, especially around congested reinforcement. Lack of concrete flowability also contributes. Detection gets difficult unless extensive coring or modern ultrasonic sensors are used.
  3. Column & Wall Honeycombs
    Vertical elements often honeycomb from inadequate vibration compaction, especially at intersections. Congested steel sections see locally depleted concrete flow, causing air voids after formwork removal. Concrete placement procedures also impact outcomes.
  4. Submerged Honeycombs
    Underwater concretes can contain voids if adequate pressure or ponding methods are not employed. Rising air bubbles get trapped due to the lack of venting mechanisms. Improper cofferdam sealing causes defects in submerged pile caps or caisson concretes.
  5. Crack-Associated Voids
    Cracks in plastic concrete propagate through weak zones, connecting multiple air voids in a honeycomb pattern. Early plastic shrinkage, thermal stresses, formwork movements as well as rebar obstructions contribute to crack honeycombs in walls and beams. Construction joint interfaces also suffer void linkage and propagation issues.
concrete honeycombing repair causes

causes of concrete honeycombing

some of the key potential causes and contributing factors for concrete honeycombing defects:

  1. Insufficient Vibration
    Inadequate vibration during concrete placement is the primary reason for concrete honeycombing. Lack of compaction allows air bubbles to remain trapped after the forms are filled. Highly congested zones often receive incomplete vibration too.
  2. Poor Workability of Concrete Mix
    A harsh, sticky concrete mix with very low slump would make adequate placing and compaction difficult. Excess coarse aggregate and lack of fines cause material segregation, preventing proper flow around rebars.
  3. Obstructed Flow in Formwork
    Design issues like small formwork openings, too many congested steel sections, or lack of venting channels can obstruct concrete flow, even for an optimal mix. This causes localized concrete honeycombing defects after vibration.
  4. Improper Pour Sequence
    If concrete placing direction does not follow an orderly sequence for the pour layout, flow would get blocked at critical sections, increasing air traps despite vibration attempts. This indicates issues with planning too.
  5. Other Factors
    Using unclean formwork with residue wood pieces or reinforcement binders can block concrete flow in spots. Ambient heat or wind causes accelerated setting, compromising flow and finish ability around steel sections. Insufficient formwork pressure containment with large pours leads to stability issues too.

The combined impact of mix ingredients, planning, workmanship, and site variables influences honeycomb generation.

concrete honeycombing Repair of structures

Main methods used for repairing honeycombs in concrete structures:

  1. Patch Repair
    Minor shallow honeycombs are patched by cutting open the defects, removing loose debris, saturating with water and applying cement-sand mortar or polymer modified patching compounds. The patch needs proper bonding and curing.
  2. Grouting
    Low viscosity specialty grouts are injected into deeper honeycombs using ports and specialized equipment. Epoxy, polyurethane or sulphur-based grouts fill gaps efficiently through narrow openings.
  3. Stitching
    Cracks emanating from honeycombs are stitched by sealed mechanical fasteners or bonded reinforcement bars. This arrests further connectivity issues. Stitching often accompanies patch repairs.
  4. Replacement
    Extensively defective zones with widely spread in concrete honeycombing need removal and replacement with fresh concrete. The boundaries are saw-cut and rebuilt matching surface finish, reinforcement anchorage, structural continuity and durability aspects through surface treatments.
  5. Hydrodemolition
    High pressure water jets erode and remove honeycombed sections with precision control. Water cannons enable selective removal of poor concrete while retaining sound zones for subsequent repair.

The choice of repair technique considers defect severity, location criticality and desired structural performance parameters post-repair.

Composite curing compounds and reinforcements combined with original concrete also work for durable repairs.

effects of honeycombing in concrete

Major effects and implications of honeycombing defects in concrete:

  1. Strength Reduction
    Honeycombs indicate poor concrete consolidation. The lack of fines and high air void content causes low compressive strength, often as much as 30-40% loss compared to design strength. Structural safety gets compromised.
  2. Durability Issues
    Honeycombs connected to the surface provide an easy path for ingress of moisture, chlorides and other corrosive agents. This accelerates corrosion of embedded steel. Without repairs, further spalling and cracking occurs over time.
  3. Appearance Issues
    For architectural concrete structures, surface honeycombing presents an unaesthetic look with exposed aggregrates, stain marks and visual imperfections. Surface repairs help restoring appearance.
  4. Reinforcement Corrosion
    Steel bars exposed in deep internal honeycombs corrode faster even before appearing on the surface. Detection gets challenging leading to unseen structural damage over time.
  5. Crack Initiation Points
    Honeycombs often propagate into more visible cracks under loading. The defect regions connect into a random pattern of micro and macro-cracks, further weakening concrete.
  6. Safety Hazard
    In warehouses, factories or pavement slabs, extensive subsurface honeycombs pose a collapse risk for forklifts, cranes or truck loads exceeding the remaining structural capacity. Sudden, brittle failures occur.

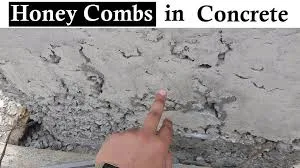

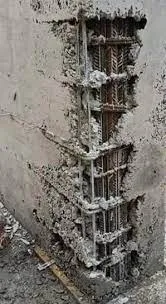

images 1 1

prevention of concrete honeycombing

Key methods to prevent honeycombing defects in concrete:

  1. Optimal Concrete Mix Design
    A properly proportioned mix with desired workability reduces honeycombs. An optimal level of fines provides cohesion and flowability. Well-graded aggregates prevent harshness issues. Admixtures enhance placement.
  2. Proper Formwork Design
    Formwork dimensioning must suit concrete fluidity. Gentle angles, conical hoppers and vent tubes facilitate flow at intersections, corners and congested areas. Form release agents enhance surface finish.
  3. Careful Placement
    A planned pouring sequence prevents trapped air. Concrete gets deposited evenly across form areas without segregation. Controlled lift heights or incremental backfilling in walls and columns eliminates unfold vibration zones.
  4. Adequate Vibration
    Sufficient vibrator capacity and experienced operators limit honeycombs through uniform compaction. Immersion vibrators inserted systematically at 300-500 mm spacing remove entrapped air pockets. Form vibrators supplement for congested sections.
  5. Continuous Inspection
    Strict first-stage visual checks by supervisors ensure adequate vibration standards and verify even concrete flow across every section during the pour. Honeycombs detected early on allow quick local repairs.
  6. Emerging Technologies
    Ultrasonic sensors, embedded piezoelectrics, thermal imaging and image processing algorithms now enable real-time honeycomb detection for timely interventions. These innovations augment visual inspection.


Inspection technologies like ultrasonic sensors, thermography drones, and image processing now allow rapid sensing of concrete honeycombing in fresh concrete for timely repairs.

However, nothing beats vigilant visual checks during the pour.

Experienced supervisors must monitor all critical form areas, intersections, and flow paths to spot inadequate vibration issues or mix workability problems in real-time.

Addressing the root defects causing honeycombs through process improvements ultimately proves more cost-effective than extensive repairs later.

Periodic checks for potential subsurface honeycombs also cannot be ignored even after construction completion and is the best remedy in detection of honeycombs

While injections, stitching, hydrodemolition support durable repairs for damaged concrete, prevention and early detection of concrete honeycombing serve as the best defenses for reinforced concrete longevity.

We learn from signatures left behind by past failures. Honeycomb patterns provide one such calling card to reassess concrete construction practices.

A tighter integration of personnel training, technological sensing, and deep defect analysis will lead to safer, sustainable concrete infrastructure.
