Precast concrete foundation walls are becoming an increasingly popular choice for home foundations due to their strength, durability, and ease of installation.
Precast foundation walls provide consistent high-quality concrete and precise dimensions that are engineered for the appropriate seismic and soil conditions.
The prefabricated panels are brought to the site already cured and ready to erect, speeding up foundation construction time.
Additionally, precast foundation walls systems require minimal site disturbance and reduce the overall environmental impact.
As more home builders and owners recognize these advantages, the market share for precast foundation walls continues expanding across residential and commercial projects.
However, there are some downsides that should also be considered from installation requirements to upfront costs.
What Are Precast Concrete Foundation walls
Unlike poured concrete foundations that are cast on the construction site, precast concrete walls are manufactured offsite in a factory environment using specialized equipment.
They are then delivered to the building site and put into place by a crane. Precast foundation walls are made by pouring concrete into a mold in the factory, letting them cure, then transporting them with a flatbed truck.
Why Choose Precast foundation walls
There are several key reasons precast foundation walls are being used more and more for home foundations:
Strength and Durability
The precast foundation walls are extremely strong, solid, and made to last.
They can withstand high pressure from the soil and resist cracks or leaks over decades.
The concrete mixture and curing method results in an exceptionally durable product.
Faster Installation
Since the precast foundation walls arrive on-site already cured and ready to install, it saves significant construction time versus building poured concrete forms and waiting days for them to set.
The precast wall sections can be put in place rapidly with heavy machinery.
Consistent Quality
Factories craft precast foundation walls to precise specifications with low margin for error.
The mixture, curing conditions, and dimensions are controlled and engineered for the particular home plan.
This also reduces waste compared to pouring foundations on location.
Energy Efficiency
Properly installed precast concrete foundations excel at naturally moderating interior temperatures.
The thermal mass keeps interiors cooler in summer and warmer in winter compared to other foundation types.
This saves on heating and cooling costs.
Minimal Site Disturbance
Delivering prefabricated wall sections means very little foundation work must be done on site.
This protects the surrounding property and landscape from excessive digging, clearing, or soil compaction that can damage the environment.
types of precast foundation walls

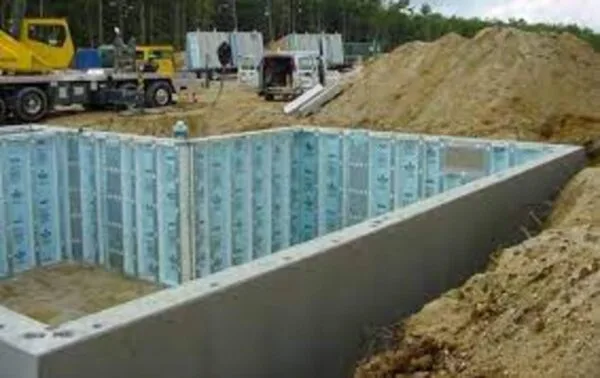

Flat Wall Sections
The most common style of precast foundation walls are flat panel sections.
These are solid rectangular slabs usually 8 feet wide, 9 to 12 feet tall, and 4 to 8 inches thick. They weigh 8,000 to 20,000 pounds each.
The flat panels are reinforced with steel rebar and may have openings cast into them for windows or ventilation.
Flat wall panels are installed by lifting them off the delivery truck using a crane, then lowering them into a prepared trench.
After proper leveling and bracing, they are backfilled with soil and tied into the floor slab. Flat wall sections create a basic concrete foundation enclosure.
ICF Block Walls
Insulating concrete forms (ICF blocks) are hollow foam or composite forms that fit together like large Lego blocks to create the outer structure for the foundation walls.
Concrete is then poured into the center cavity of the ICF block units once they are stacked in place.
The foam or plastic composite forms add a layer of continuous insulation and also ease installation compared to stacking traditional cement blocks.
However, ICF block walls have higher upfront costs than standard flat concrete sections.
Post and Panel Walls
Post and panel precast foundation walls use narrow vertical concrete posts spaced several feet apart that are anchored into the ground.
Horizontal wall panels are then set between the posts to create the walls.
This style is more customizable for wider wall spans, curved layouts or angled sites.
Post and panel walls require more on-site assembly and precision compared to basic flat panel installation.
But the segmented style can adapt better to slopes and uneven terrain.
Cellular Wall Sections
Cellular precast foundation walls have a honeycomb interior matrix created with corrugated steel forms when originally cast.
This gives exceptional strength and insulating abilities.
Cellular wall sections are typically custom produced for each project rather than mass produced which limits availability and increases cost.
The array of precast wall options allows engineers to tailor the foundation design to specific structural loads, environments, and installation sites.
pros and cons of precast concrete foundation wall system
Pros
Speed – Precast walls can be erected faster because they show up onsite fully cured and ready to be placed. This can shave weeks off a project schedule.
Durability – Precast concrete is extremely durable and resistant to cracks compared to cinder blocks or field-poured walls. They are engineered to the appropriate thickness and steel reinforced.
Quality Control – Since precast walls are fabricated offsite in a specialized plant, the concrete mixture and curing process is meticulously controlled, ensuring consistent high quality.
Weather Resistant – Precast wall sections facilitate fast enclosure of the foundation space, protecting the job site and materials from weather impacts that can delay other foundation types.
Minimal Waste – Fabricating precast panels to custom specifications results in less excess concrete and rebar waste onsite versus pouring foundations.
Cons
Cost – Precast foundation systems do typically have a higher upfront cost, approximately 15-30% more than field poured walls. However, time savings may offset some of the price premium.
Heavy Equipment – Specialized cranes, shoring, bracing etc is mandatory for precast installation, which not all contractors have readily available. This can limit competitive bids and pricing flexibility in some regions.
Site Prep – To support the precast walls and equipment, the job site must be specifically prepared with an engineered subsurface, compacted aggregate base course material, and accessible roadways. This site work is an additional cost consideration.
Permitting – In some areas, prefab foundation systems require supplementary engineering approval beyond standard wall specs. Extra inspections may be mandated as well during assembly.
precast concrete foundation walls cost
Precast Wall Cost Per Square Foot
The cost of precast concrete foundation walls ranges from $5 – $8 per square foot installed.
This equates to $10,000 – $16,000 for a 2,000 sq ft foundation.
Higher end pricing is more common for custom homes versus track housing.
Location also impacts pricing.
Factors Influencing Precast Wall Pricing
Several key factors determine the final price of precast wall systems:
- Wall thickness – 8″ walls are standard, 12” walls handle more load
- Concrete strength – 5,000 to 8,000 PSI mixes are typical
- Steel reinforcement amount – More rebar adds strength
- Delivery distance – Travel costs from the precast plant
- Crane equipment rental
- Site access – Ease of install and equipment maneuverability
- Retaining walls – Extra labor and concrete if retaining soil
- Waterproofing – Interior/exterior sealing specifics
- Backfill material – Gravel, sand or soil type and compaction
Additional Costs to Budget For
On top of the actual precast wall system, foundation projects incur added expenses:
- Excavation & Site Prep: Grading, compacting substrate, temporary shoring and drainage
- Footings: Concrete and rebar for foundation walls to bear on
- Floor Slab: Separate concrete pour for interior slab
- Utilities: Electrical, plumbing and conduits cast inside walls
- Backfill: Soil fill, gravel, vapor barrier behind walls
- Landscaping: Replacement planting, seeding and sprinklers
Precast concrete foundations offer homeowners and builders clear benefits in quality, strength, and construction efficiency.
However, evaluating complete costs is recommended as precast remains 15-30% above poured foundations.
Precast is an innovative advancement, providing quality assurance and reliable structural performance.
As more builders recognize the strengths precasting achieves, this promising foundation method should become mainstream and affordably priced.
