Grouting has many applications in different fields, such as vibration control, tile installation and bridge repairs. In this blog post, we will briefly introduce 10 grouting applications and how grouting can help improve the performance and durability of the structures.

Vibration control: Grouting can be used to reduce the vibration and noise of machinery and equipment by providing a damping layer between the base and the foundation.

Grouting can also help prevent the loosening of bolts and nuts due to vibration. Grouting can be applied to various types of machines, such as pumps, compressors, generators and turbines.

Tile installation: Grouting can be used to fill the joints between tiles and create a smooth and uniform surface.

Grouting can also prevent water and dirt from penetrating into the gaps and causing damage to the tiles and the substrate. Grouting can be applied to various types of tiles, such as ceramic, porcelain, stone and glass.

Bridge repairs: Grouting can be used to repair cracks and defects in concrete bridges and restore their strength and stability.

Grouting can also help protect the steel reinforcement from corrosion and extend the service life of the bridges. Grouting can be applied to various types of bridges, such as beam, arch, cable-stayed and suspension bridges.

Grouting has many applications in construction industry. Some of the major applications of are as follows.

Seepage control
Soil solidification or stabilization
Underpinning
Vibration control
Tile installation
Bridge repairs
Mining
Seismic retrofitting
Concrete repairs
Foundation stabilization

Table of Contents

Grouting Applications

Grouting can be applied to various engineering problems involving soil improvement and stabilization. Some examples are:

Dam construction and repair: Grouting can be used to seal leaks in dams or to strengthen their foundations by filling cracks or voids in the rock or concrete.
Tunneling and mining: Grouting can be used to stabilize tunnel walls and roofs by reducing water inflow and increasing rock mass strength. Grouting can also be used to fill abandoned mines or cavities to prevent subsidence or collapse.
Foundation engineering: Grouting can be used to improve the bearing capacity and settlement characteristics of shallow or deep foundations by increasing the soil density and reducing its compressibility.
Groundwater control: Grouting can be used to create barriers or curtains to prevent or reduce groundwater flow in areas where it is undesirable or harmful, such as near contaminated sites or landfills.

Grouting is a versatile and effective technique that can enhance the performance and safety of various geotechnical structures and projects.

Principles of Grouting

The main components of a grouting system are the grout material, the injection equipment, and the injection method.

Grout Material

The grout material can be either cementitious, chemical, or a combination of both.

Cementitious grouts are composed of cement and water, with or without additives such as sand, clay, or fly ash.

Chemical grouts are composed of organic or inorganic compounds that react with water or other chemicals to form a gel or a solid. The choice of grout material depends on factors such as the soil type, the desired properties of the grout, the environmental conditions, and the cost.

Injection Equipment

The injection equipment consists of pumps, pipes, valves, and nozzles that deliver the grout material to the injection point.

The injection method can be either pressure grouting or gravity grouting. Pressure grouting involves applying a high pressure to force the grout into the soil.

Injection Method

Gravity grouting involves allowing the grout to flow into the soil under its own weight. The choice of injection equipment and method depends on factors such as the depth and location of the injection point, the volume and viscosity of the grout, the permeability and compressibility of the soil, and the required injection rate and pressure.

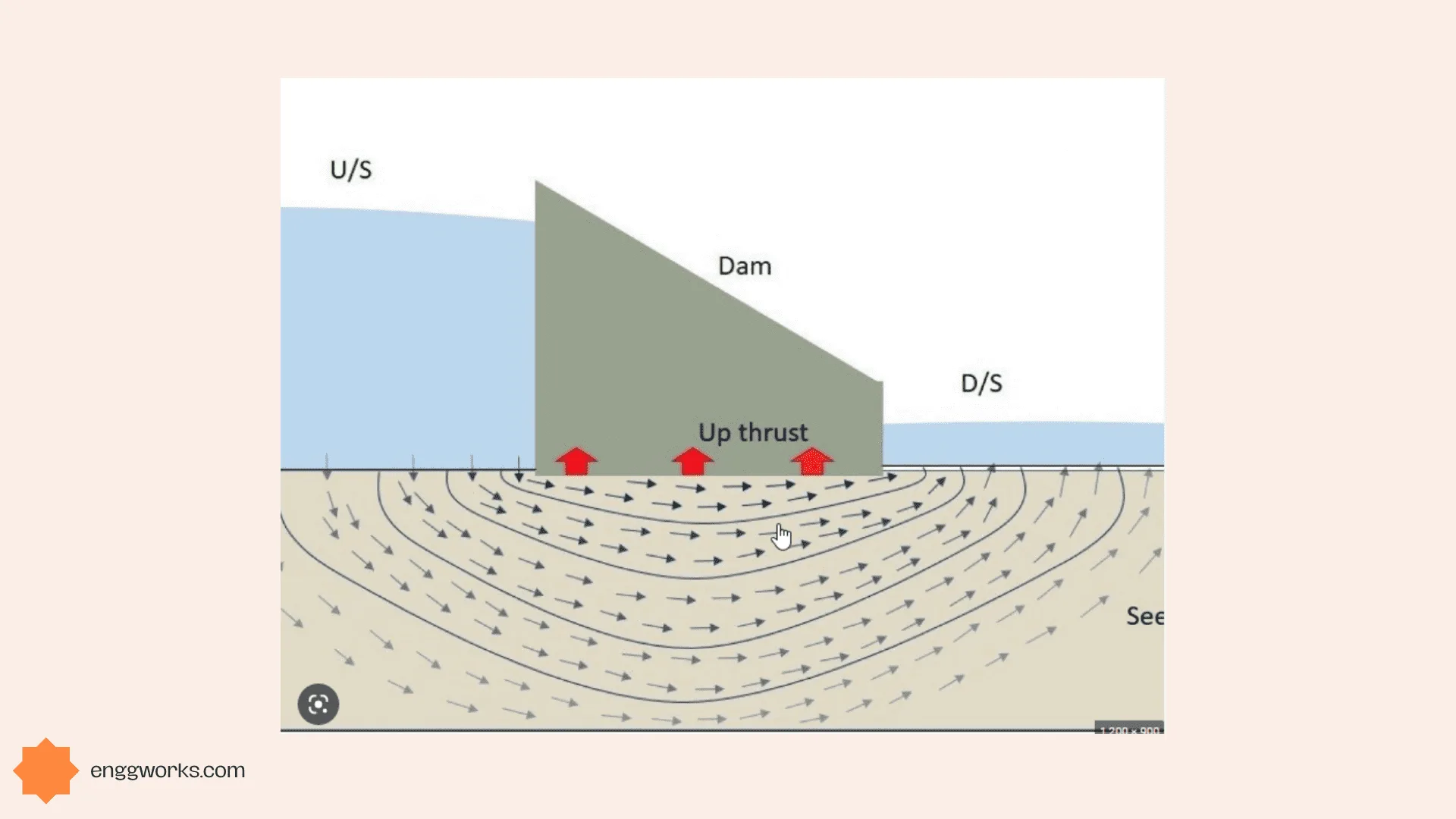

Seepage Control

Seepage is the flow of water through soil or rock due to a difference in hydraulic pressure. Seepage can cause problems such as erosion, settlement, leakage, contamination and instability of structures.

Grouting can be used to reduce or stop seepage by filling the gaps or cracks in the soil or rock with a suitable material that forms a barrier or a bond.

There are different types of grouting materials and methods depending on the nature and purpose of the application. Some of the common types are:

Cement grouting: This involves injecting a mixture of cement, water and sometimes additives into the soil or rock. Cement grouting can be used to fill large voids, joints or fissures and to increase the bearing capacity of foundations. Cement grouting can also be used to form grout curtains below dams or levees to provide seepage cutoff .
Chemical grouting: This involves injecting a chemical solution that reacts with the soil or rock or with another component to form a gel or a solid mass. Chemical grouting can be used to fill small pores, cracks or fissures and to seal concrete joints or cracks in below-grade structures. Chemical grouting can also be used to prevent migration of contaminants or to restrict groundwater flow into excavations.
Resin grouting: This involves injecting a resin that hardens after curing into the soil or rock. Resin grouting can be used to fill small cracks or voids and to bond fractured rock or concrete. Resin grouting can also be used to repair pavement or ground below the foundation.
Bentonite grouting: This involves injecting a slurry of bentonite clay and water into the soil or rock. Bentonite grouting can be used to fill large voids or cavities and to create a low-permeability zone around wells or boreholes.
Bituminous grouting: This involves injecting a hot bitumen or asphalt into the soil or rock. Bituminous grouting can be used to fill large voids or cracks and to waterproof tunnels or pipelines.

Grouting is an effective and versatile technique for seepage control in various construction projects. However, grouting requires careful planning, design and execution to achieve the desired results. Some of the factors that need to be considered are:

The type and properties of the soil or rock
The type and properties of the grout material
The injection method and equipment
The injection pressure and volume
The injection pattern and spacing
The monitoring and quality control

Grouting can improve the performance and durability of structures by reducing seepage and enhancing stability. Grouting can also protect the environment by preventing contamination and erosion. Grouting is a valuable tool for engineers and contractors who deal with seepage problems in construction.

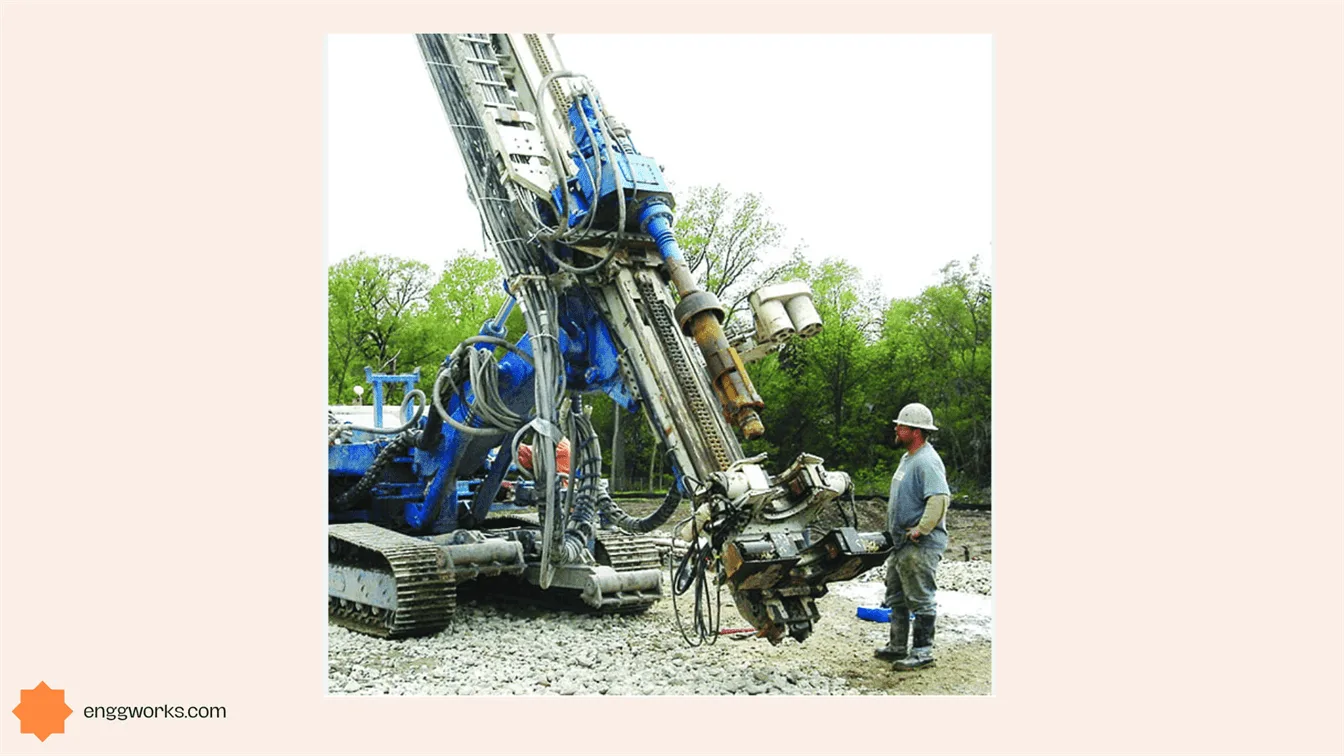

Soil solidification or stabilization

Grouting is a method of injecting a fluid mixture into the soil to improve its strength, stability and permeability. Grouting can be used for various applications, such as:

Stopping water flows in mines, tunnels, parkades, dams, and underground structures
Soil stabilization or solidification
Underpinning structures and mining applications
Bearing capacity improvements
Reducing and correcting settlement
Ground improvements
Providing excavation support
Filling the void between the lining and the rock face in tunneling

There are different types of grouting, such as compaction grouting, jet grouting and permeation grouting. Each type has its own advantages and disadvantages, depending on the soil conditions, loading requirements, project location and expected outcomes.

Compaction grouting involves injecting a low-slump mortar under high pressure into the soil, creating bulb-shaped masses that compact the surrounding soil and fill the voids. This method is suitable for granular soils with low permeability and can increase the density, stiffness and bearing capacity of the soil.

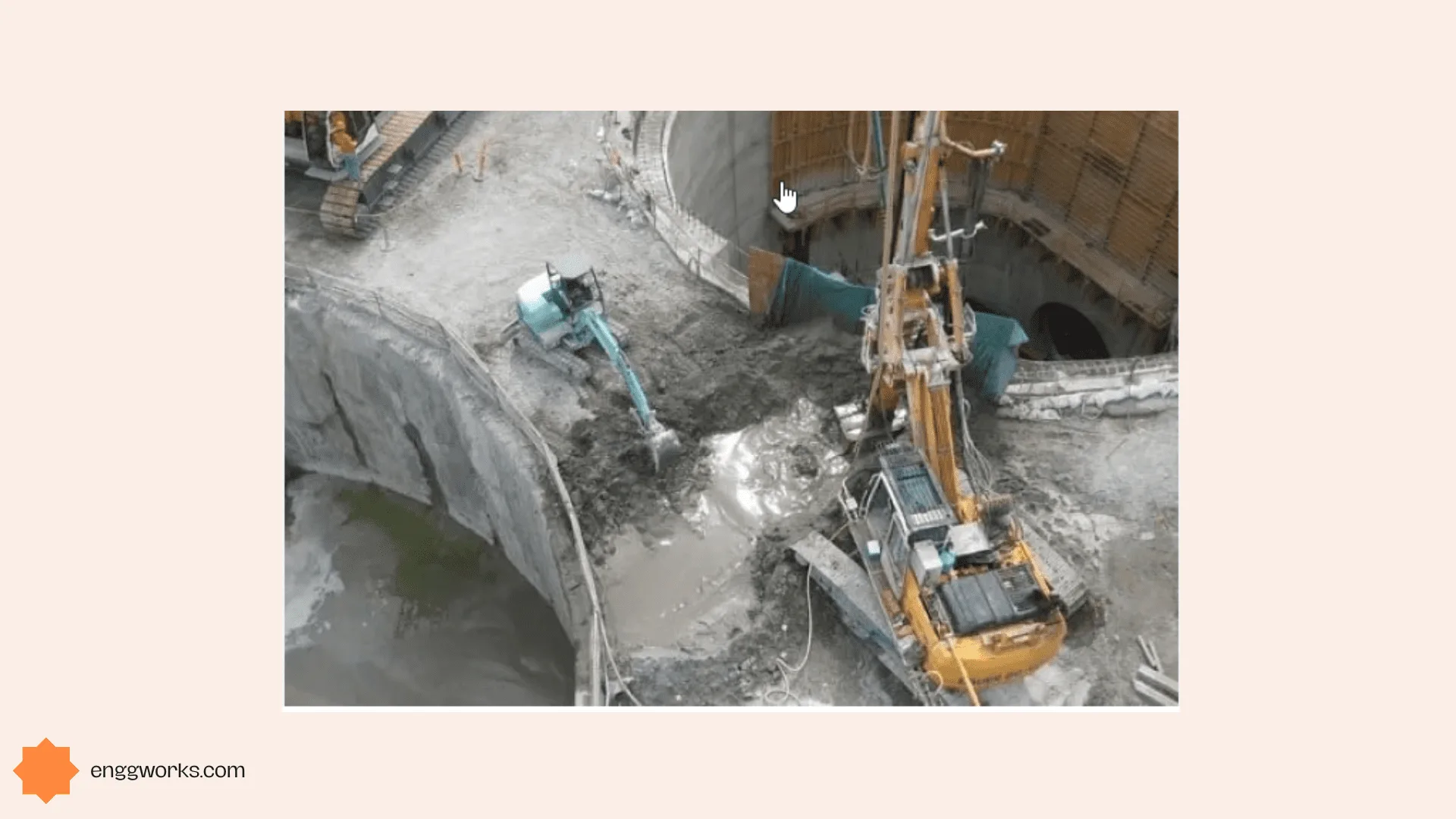

Jet grouting involves injecting a high-velocity jet of fluid (water, air or cement) into the soil, eroding and mixing it with the injected fluid to form columns of soil-cement. This method can be used for various soil types and can create large-diameter columns with high strength and low permeability.

Permeation grouting involves injecting a low-viscosity fluid (cement, chemical or resin) into the soil pores under low pressure, filling the voids and bonding the soil particles together. This method is effective for fine-grained soils with high permeability and can reduce the liquefaction potential, seepage and settlement of the soil.

Grouting is a versatile and cost-effective technique for soil stabilization or solidification. It can enhance the performance and durability of structures built on weak or unstable soils. However, grouting requires careful planning, design and execution to achieve the desired results.

Underpinning

Grouting underpinning is a technique that involves injecting grout into the soil or rock below a foundation to improve its stability and strength. Grouting underpinning can be used for various purposes, such as:

Stopping water flows in mines, tunnels, dams, and underground structures
Soil stabilization and consolidation
Underpinning structures that have settled or are at risk of collapse
Creating barriers to groundwater flow and contamination
Providing excavation support and cut-off walls

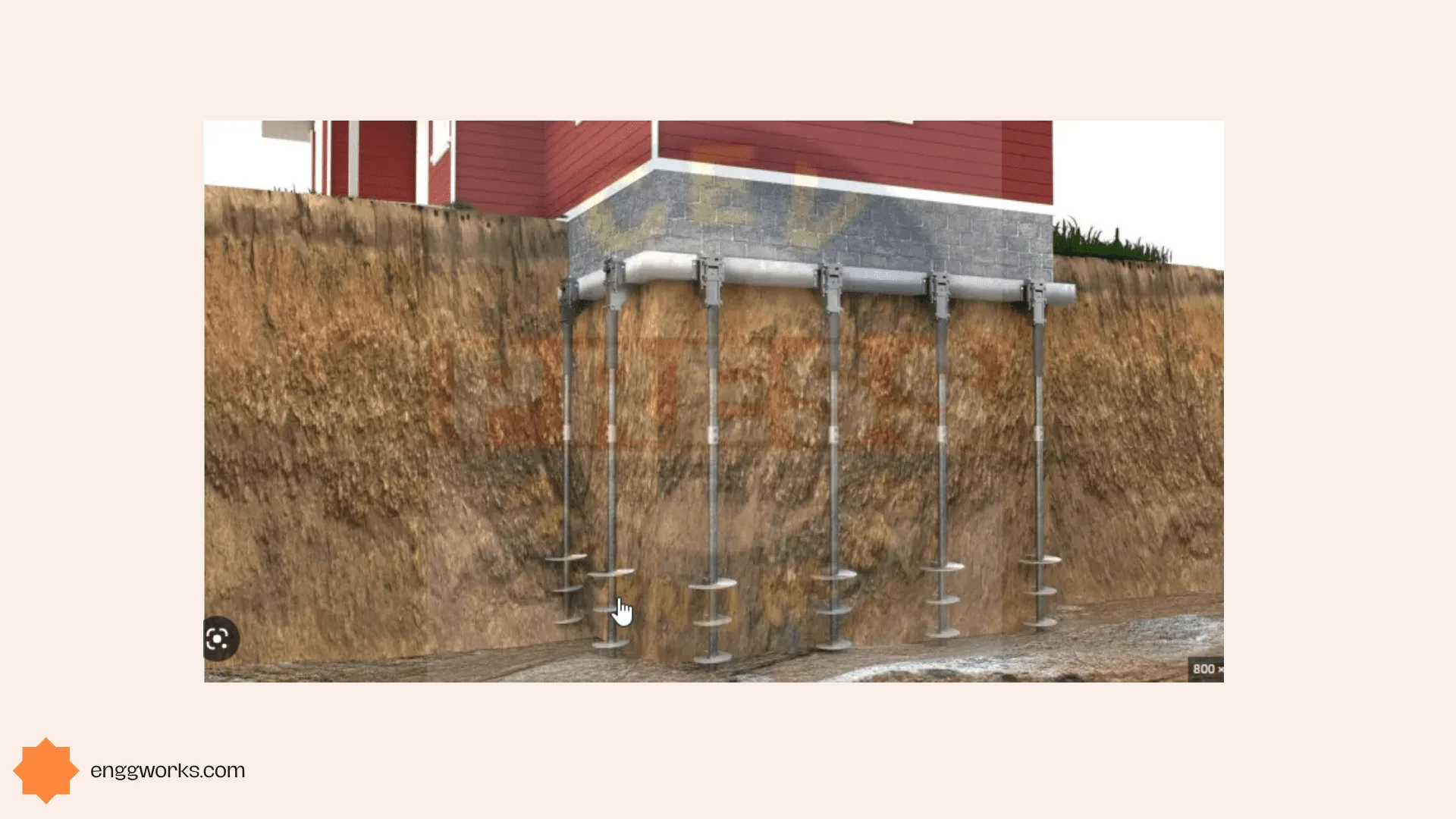

underpinning process in grouting techniques

Grouting underpinning is an effective and economical method for enhancing the performance and safety of foundations. However, it requires careful planning, design, and execution to achieve the desired results. Some of the factors that need to be considered are:

The site conditions and geotechnical investigation
The type and condition of the existing foundation
The objectives and requirements of the project
The selection and design of the grout material and injection method
The quality control and monitoring of the grouting process

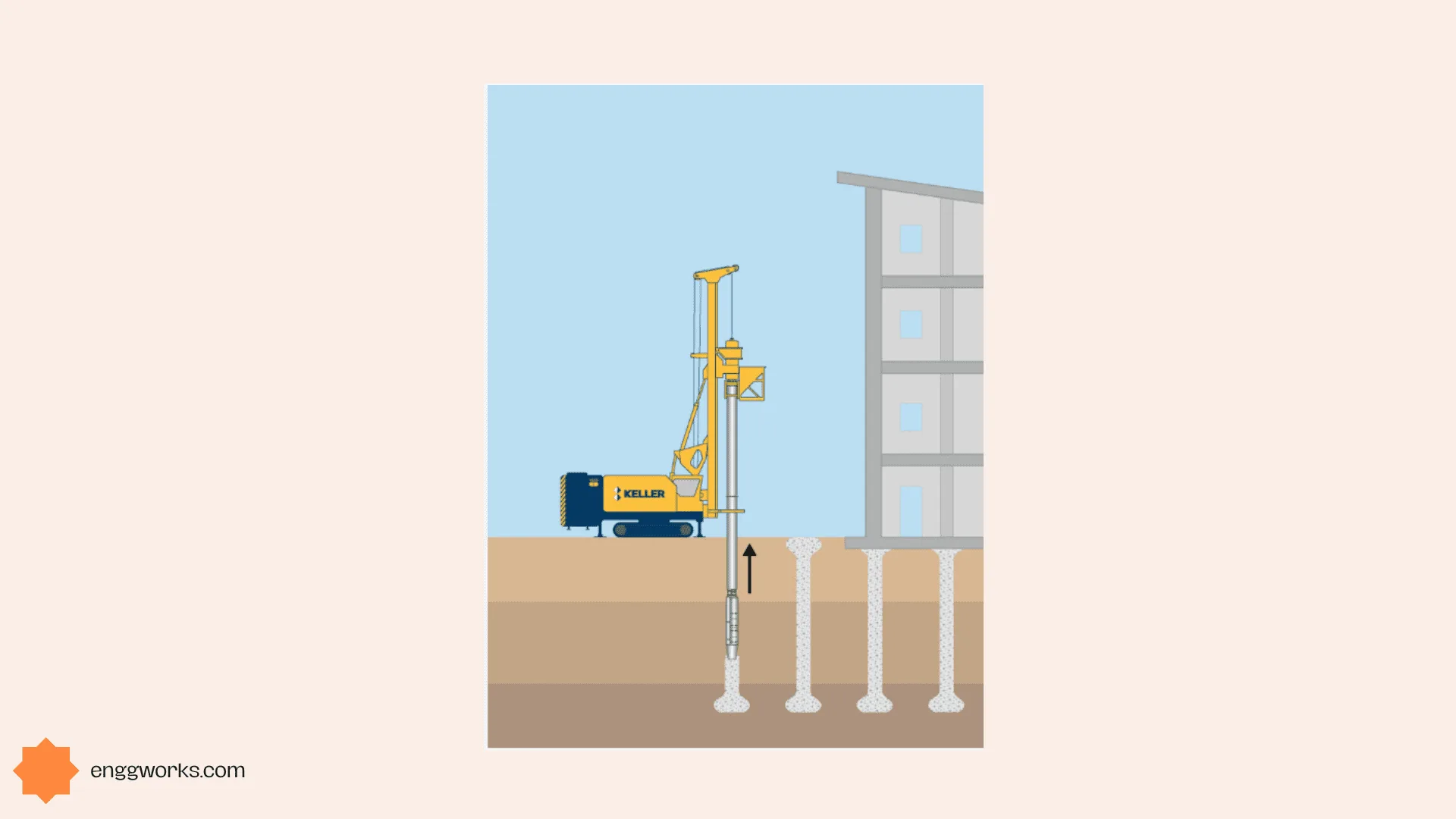

Vibration Control – Grouting Applications

Vibration control grouting is a technique that can be used to improve the stability and performance of foundations in fine silty sand or silt soils.

The basic principle of this technique is to use mechanical vibration to liquefy the soil and reduce its strength, and then inject grout into the soil to fill the voids and increase its stiffness.

This can help reduce the settlement, deformation and vibration of the foundation under dynamic loads.

Vibration control grouting can be applied to various types of foundations, such as piles, footings, slabs or mats.

The vibration can be generated by different methods, such as sonic, ultrasonic or hydraulic. The grout can be cement-based or resin-based, depending on the soil conditions and the desired properties.

The grout injection can be done in stages or continuously, depending on the depth and extent of the treatment area.

Some of the advantages of vibration control grouting are:

It can improve the bearing capacity and reduce the settlement of the foundation.
It can increase the damping and isolation of the foundation from external vibrations.
It can enhance the resistance of the foundation to seismic loads and liquefaction.
It can prevent or reduce the erosion and piping of the soil.
It can be applied to existing or new foundations with minimal disruption.

Some of the challenges of vibration control grouting are:

It requires careful design and execution to achieve optimal results.
It may cause unwanted effects on adjacent structures or utilities due to vibration or grout leakage.
It may have environmental impacts due to noise, dust or grout contamination.

Vibration control grouting is a promising technique that can offer significant benefits for foundation engineering in challenging soil conditions. However, it also requires further research and development to optimize its performance and applicability.

How to Grout Your Tile Installation

Grouting is the final step of installing tile, and it can make or break the look and performance of your project.

Grout is a cement-based material that fills the gaps between the tiles and creates a smooth, uniform surface. Grout also helps to protect the tiles from water damage and stains.

Here are some tips on how to grout your tile installation:

Choose the right grout for your tile type and location.
There are two main types of grout: sanded and unsanded.
Sanded grout contains fine sand particles that add strength and durability, while unsanded grout is smoother and easier to work with.
Sanded grout is recommended for larger joints (more than 1/8 inch) and for floor tiles, while unsanded grout is suitable for smaller joints (less than 1/8 inch) and for wall tiles.
You can also choose between different colors and finishes of grout to match or contrast with your tile design.
Mix the grout according to the manufacturer’s instructions.
You will need a bucket, a drill with a mixing paddle attachment, water, and grout powder.
Add water gradually to the powder and mix until you get a smooth, creamy consistency.
Avoid adding too much water or overmixing, as this can weaken the grout and cause cracking or shrinking.
Let the grout sit for about 10 minutes to allow the chemical reaction to take place, then remix it briefly before applying.
Apply the grout with a rubber float. Working in small sections, spread the grout diagonally across the tile joints, pressing firmly to fill them completely.
Make sure to cover all the edges and corners as well. Remove any excess grout from the tile surface with the edge of the float, holding it at a 90-degree angle.
Clean the tiles with a damp sponge.
After letting the grout set for about 15 to 20 minutes, wipe off any haze or residue from the tiles with a clean, damp sponge.
Rinse the sponge frequently and wring it out well. Do not use too much water or scrub too hard, as this can wash away or damage the grout.
Repeat this step until the tiles are clean and clear.
Seal the grout after it cures. Depending on the type of grout you used, you may need to wait 24 to 72 hours before sealing it.
Sealing is an optional but recommended step that helps to protect the grout from stains, mold, and mildew.
You can use a spray-on or brush-on sealer, following the directions on the product label. Apply the sealer evenly over the grout lines, avoiding contact with the tiles.
Wipe off any excess sealer with a cloth or sponge. Let the sealer dry completely before using or walking on the tiled area.

Grouting your tile installation is not difficult if you follow these steps and use the right tools and materials. With proper grouting, you can enjoy a beautiful and durable tile surface for years to come.

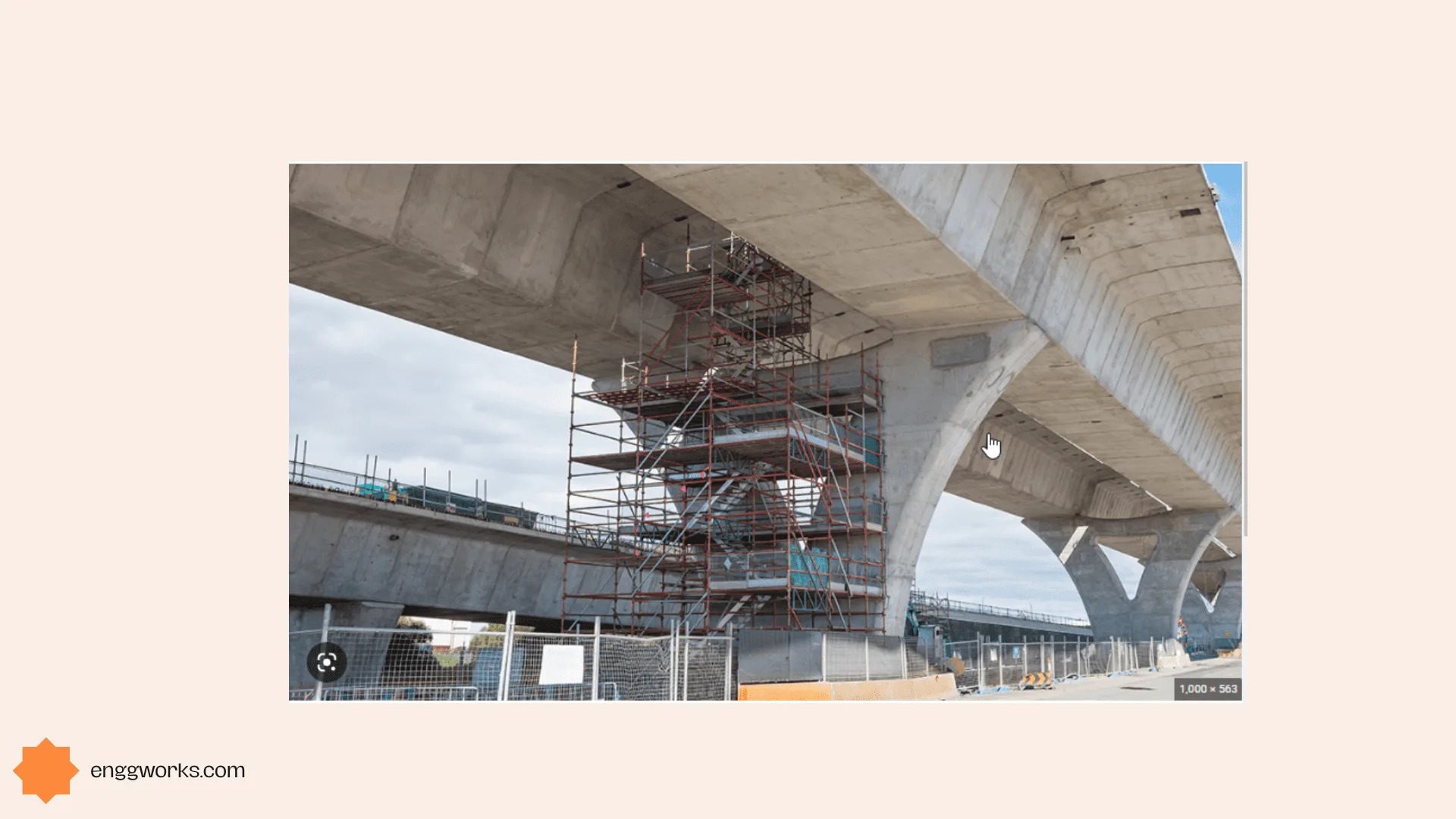

Bridge Repairs

Bridge repairs are essential for maintaining the safety and functionality of bridges. Bridges are exposed to various environmental and operational factors that can cause deterioration, damage or failure over time.

Some of the common causes of bridge damage are corrosion, fatigue, weathering, erosion, seismic activity, overloading, impact, vandalism and fire.

Bridge repairs can involve different techniques depending on the type and extent of damage, the structural component affected, the available resources and the desired outcome. Some of the more common techniques for bridge repairs include:

Expansion joint repair and replacement: Expansion joints allow traffic to continue seamlessly across a bridge structure. They also help to accommodate movement of the bridge, shrinkage, and variations in temperature that cause the bridge to naturally expand and contract. Expansion joints can wear out or get damaged due to exposure to water, debris, chemicals or heavy loads. Repairing or replacing expansion joints can restore the smoothness and flexibility of the bridge deck.
Concrete repair: Concrete is a widely used material for bridge construction due to its strength, durability and versatility. However, concrete can also suffer from cracking, spalling, delamination, scaling or honeycombing due to various factors such as poor quality, inadequate curing, improper design, thermal stress, chemical attack or reinforcement corrosion. Concrete repair can involve different methods such as cement or epoxy grouting, shotcreting or guniting, jacketing of piers or columns, patching or overlaying of damaged areas or application of protective coatings.
Steel repair: Steel is another common material for bridge construction due to its high strength-to-weight ratio, ductility and ease of fabrication. However, steel can also be affected by corrosion, fatigue, buckling, distortion or fracture due to exposure to moisture, oxygen, salt, cyclic loading, impact or fire. Steel repair can involve different methods such as welding, bolting, riveting, clamping or strapping of damaged members or application of corrosion inhibitors or protective coatings.
Strengthening: Strengthening is a technique that aims to increase the load-carrying capacity or service life of a bridge structure. Strengthening can be done for various reasons such as to accommodate increased traffic volume or weight, to improve seismic resistance or to restore structural integrity after damage. Strengthening can involve different methods such as adding external reinforcement, prestressing or post-tensioning of existing members, installing fiber-reinforced polymer (FRP) composites or steel plates or applying ultra-high performance concrete (UHPC) overlays.

Bridge repairs are important for ensuring the safety and reliability of bridges. Bridge repairs should be done by qualified professionals who can assess the condition of the bridge structure, choose the right technique for repair and execute the repair work with quality and efficiency.

Grouting can be used for various purposes, such as sealing leaks, consolidating foundations, controlling groundwater flow, stabilizing slopes, and enhancing soil properties.

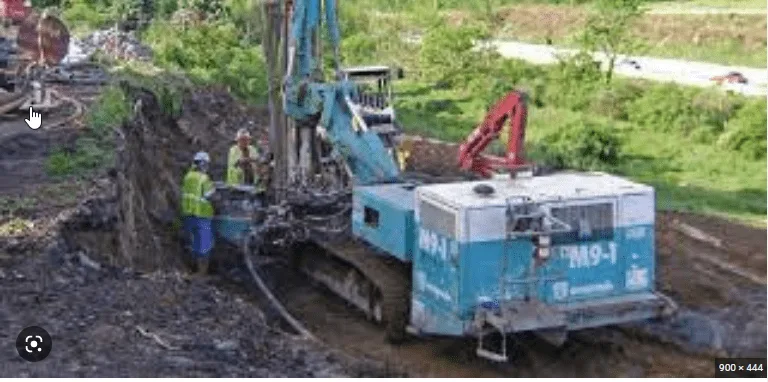

Mine Grouting

Mine grouting is a technique that involves injecting a fluid material into underground voids or cracks to fill them and prevent water ingress, ground movement, or subsidence. Mine grouting can be used for different purposes, such as:

Stabilizing shallow mine workings that pose a risk to surface structures or infrastructure
Creating a barrier around mine workings to isolate them from groundwater or adjacent mines
Treating mine shafts that are open, collapsed, or flooded to seal them and prevent hazards
Compacting loose or fractured rock masses to improve their strength and stability
Infilling large cavities or sinkholes that result from mining or natural processes

Mine grouting can be performed using various types of materials, such as cement, clay, sand, fly ash, or chemical additives.

The choice of material depends on the characteristics of the voids, the desired properties of the grout, and the environmental and economic factors. The grout can be injected under low or high pressure, depending on the depth and extent of the voids and the required degree of consolidation.

Mine grouting requires careful planning, design, and execution to achieve the intended objectives and avoid adverse effects. Some of the aspects that need to be considered are:

The geology and hydrogeology of the site and the surrounding area
The location, size, shape, and condition of the voids or cracks
The drilling method, equipment, and pattern for grout injection
The grout mix design, preparation, and quality control
The grout injection parameters, such as volume, rate, pressure, and duration
The monitoring and evaluation of the grouting performance and effectiveness

Mine grouting is an important technology for mine water safety management, as it can prevent water inrush, contamination, or flooding in underground mines. It can also protect groundwater resources from mining impacts and reduce the environmental footprint of mining activities.

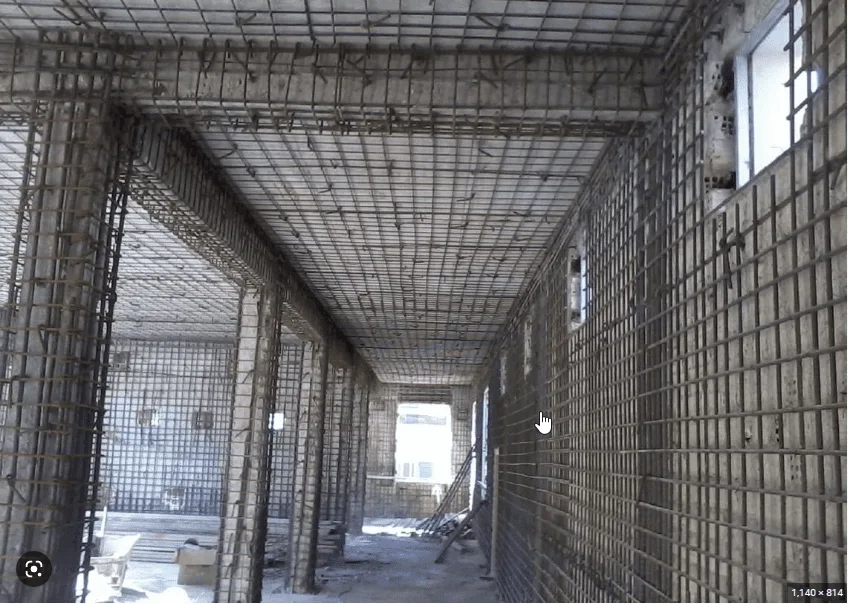

Seismic Retrofitting

If you live or work in an area that is prone to earthquakes, you may have heard of seismic retrofitting. But what exactly is it and why is it important? In this blog post, we will explain the basics of seismic retrofitting and how it can benefit you and your property.

What is seismic retrofitting?

Seismic retrofitting is the modification of existing structures to make them more resistant to seismic activity, ground motion, or soil failure due to earthquakes. Seismic retrofitting can involve different techniques depending on the type, age, and condition of the structure. Some of them are –

Adding new shear walls: These are vertical walls that provide lateral strength and stiffness to the structure. They can be made of reinforced concrete, steel, or wood.
Jacketing: This is the process of wrapping existing columns or beams with additional materials such as steel plates, concrete, or fiber-reinforced polymers (FRP) to increase their strength and ductility.
Base isolation: This is a technique that decouples the structure from the ground by placing flexible bearings or pads between them. This reduces the transmission of seismic forces from the ground to the structure.
Mass reduction: This is a technique that reduces the weight of the structure by removing unnecessary or redundant elements. This lowers the inertia forces that act on the structure during an earthquake.

Why is seismic retrofitting important?

Seismic retrofitting is important for several reasons:

It can save lives and prevent injuries by reducing the risk of structural collapse or damage during an earthquake.
It can protect your property and assets by minimizing the repair and replacement costs after an earthquake.
It can enhance your comfort and peace of mind by improving the performance and functionality of your structure during and after an earthquake.
It can comply with building codes and regulations that require seismic retrofitting for certain types of structures or locations.

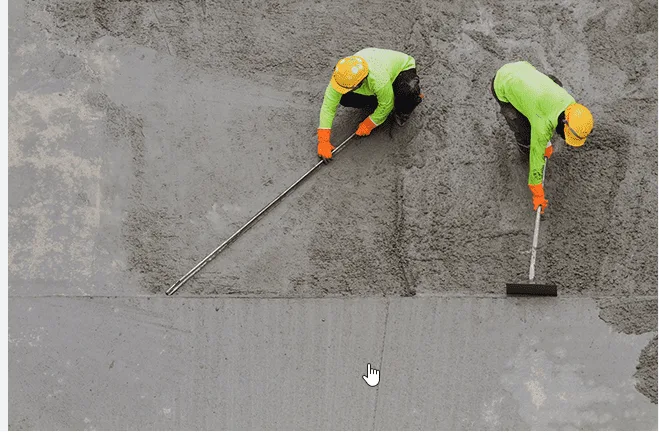

Concrete Repairs

Concrete repairs are essential for maintaining the structural integrity and aesthetic appearance of concrete structures.

Concrete can deteriorate due to various factors, such as chemical exposure, corrosion, mechanical damage, physical damage, or poor construction.

Depending on the cause and extent of the damage, different methods of concrete repair can be used to restore the original condition of the concrete.

Grouting: This method involves injecting a fluid material into the cracks or voids in the concrete to fill them and bond the concrete. Grouting can be done with cementitious, epoxy, or polyurethane materials, depending on the size and location of the cracks. Grouting can improve the strength, durability, and water tightness of the concrete.

Concrete repair is a complex and specialized process that requires proper diagnosis, selection, and execution of the appropriate method and material. Concrete repair can extend the service life and performance of concrete structures and prevent further deterioration or failure.

References:

: https://www.sika.com/en/construction/concrete-repair.html
: https://www.concrete.org/topicsinconcrete/topicdetail/repair%20of%20concrete
: https://civiljungle.com/concrete-crack-repair/
: https://www.sciencedirect.com/topics/engineering/concrete-repair

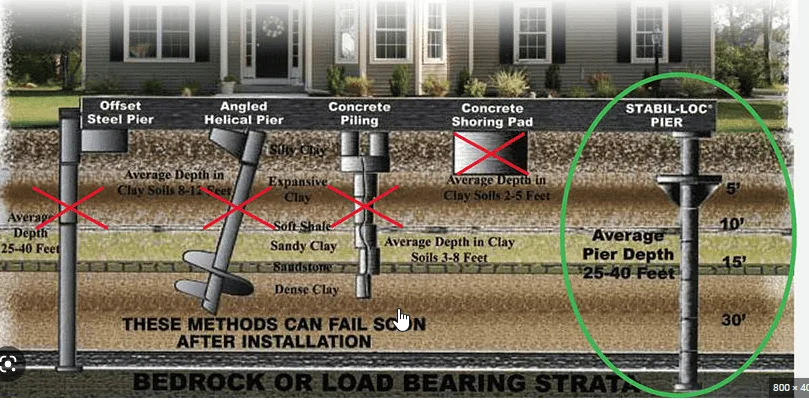

Foundation Stabilization

Foundation stabilization is a process of improving the stability and strength of a building’s foundation by using various techniques and materials.

Foundation stabilization can prevent or repair foundation problems such as settlement, cracking, heaving, or shifting that can compromise the structural integrity of the building and cause damage to the interior and exterior walls, floors, doors, windows, and plumbing.

There are different types of foundation stabilization methods that can be used depending on the soil conditions, the type of foundation, the extent of damage, and the budget. Some of the common methods are:

Soil stabilization: This is a technique of improving the properties of the soil under and around the foundation by adding chemical or mechanical agents. Chemical agents such as lime, cement, fly ash, or polymers can increase the density, strength, and water resistance of the soil. Mechanical agents such as gravel, sand, or geotextiles can improve the drainage, compaction, and load-bearing capacity of the soil. Soil stabilization can prevent further settlement or heaving of the foundation by creating a more stable base for it.

Foundation stabilization is an important aspect of maintaining a safe and sound building. It can prevent costly and dangerous foundation failures that can compromise the value and functionality of your property.

If you notice any signs of foundation problems such as cracks, gaps, uneven floors, sticking doors or windows, or water leaks, you should contact a professional foundation repair contractor as soon as possible to assess your situation and recommend the best solution for your needs.

Grouting Applications
